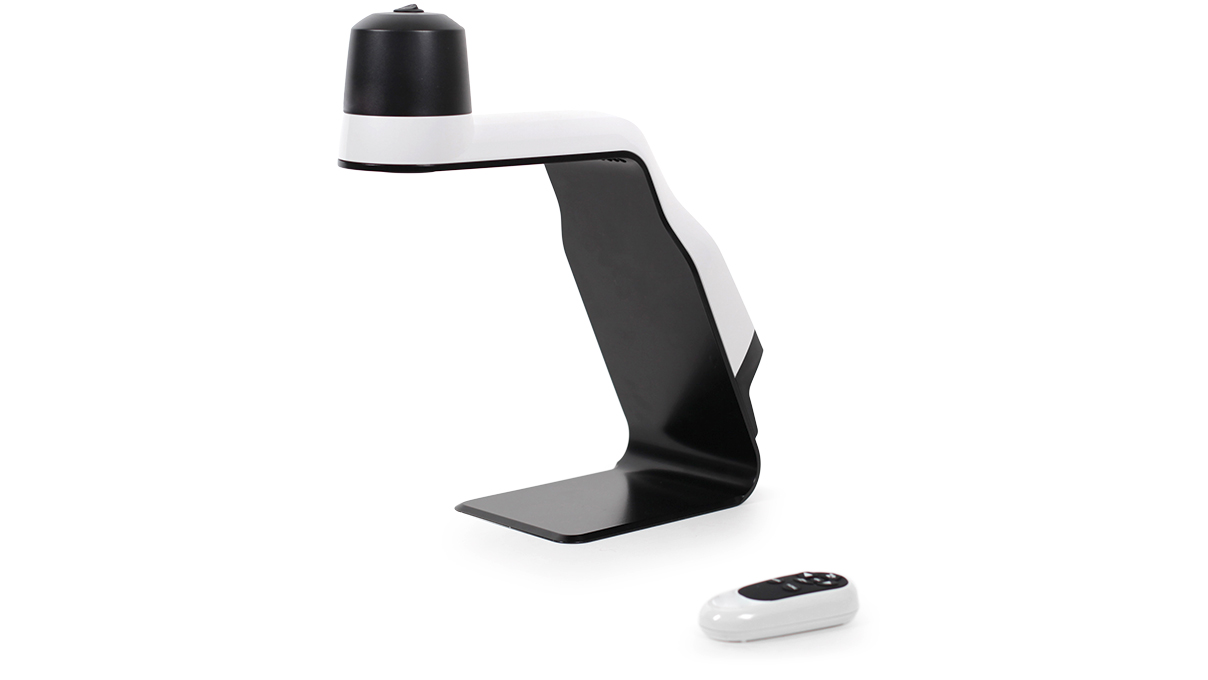

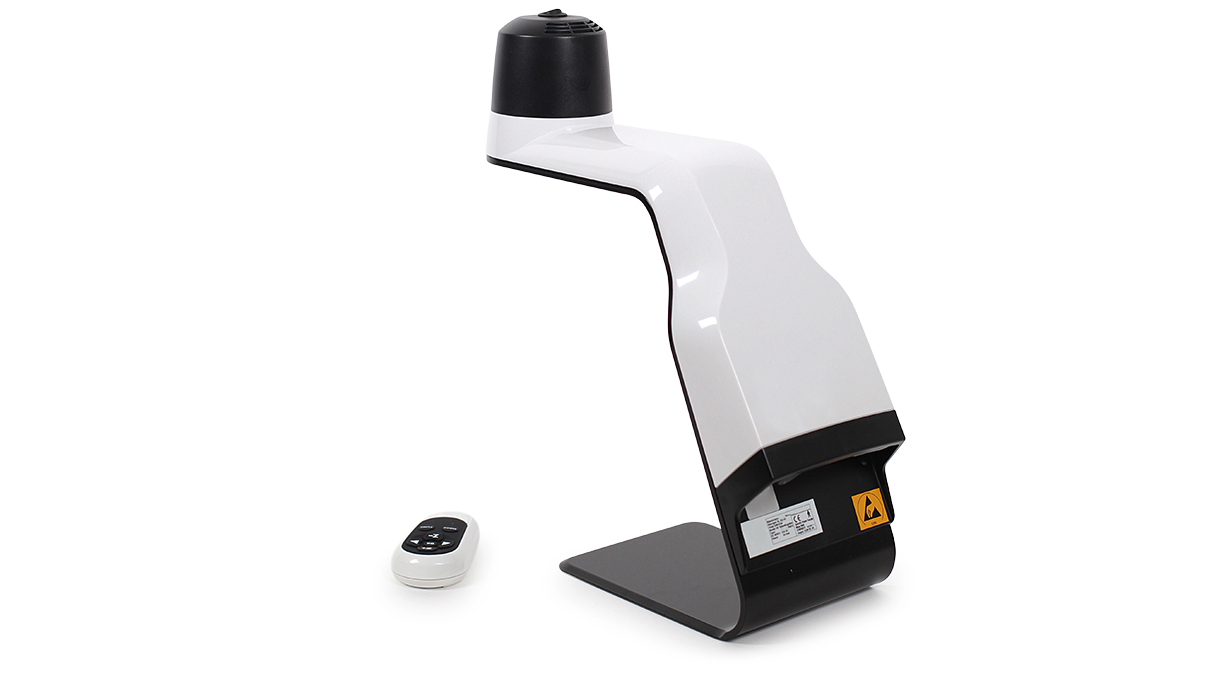

Tek-Scope Plus optical inspection system

Product information "Tek-Scope Plus optical inspection system"

The Tek-Scope Plus optical inspection system with its FHD camera and autofocus provides 46x optical magnification (27" monitor) and up to 460x digital magnification (92x recommended - 27" monitor).

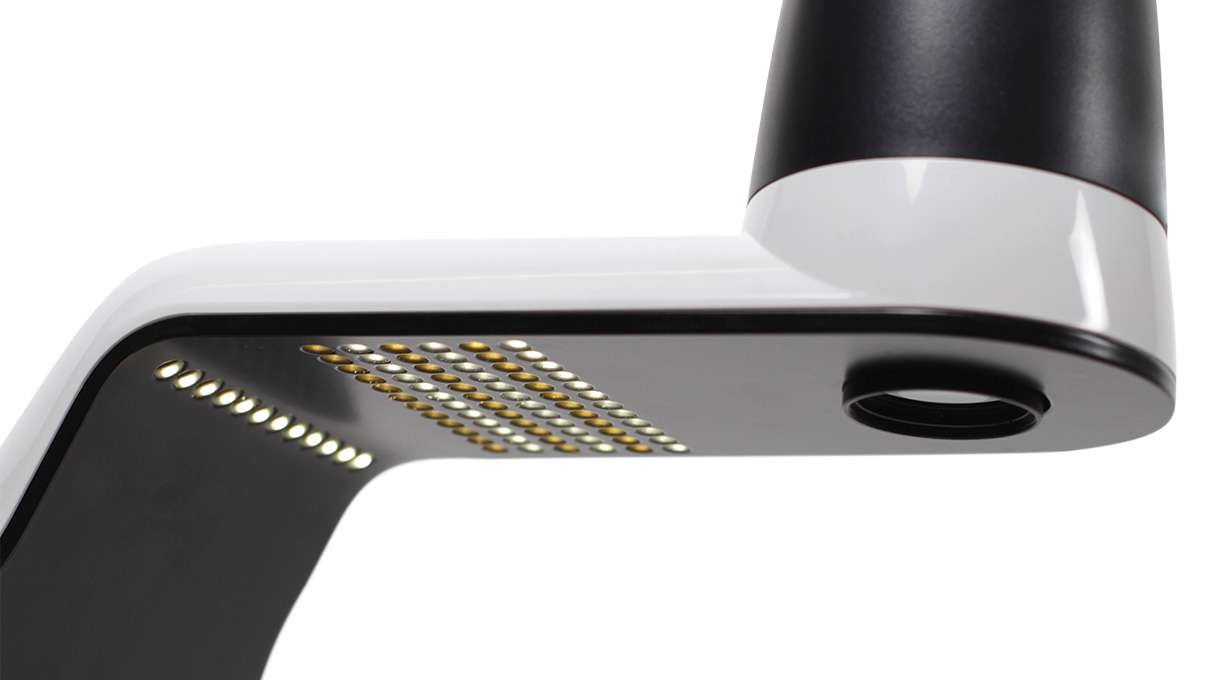

Tek-Scope Plus produces high-quality, distortion-free FHD images up to 1080p with no lag and excellent depth of field. The integrated LED lights provide shadow-free illumination. The large 310 mm working distance allows inspection of numerous objects.

Autofocus frees the hands and allows quick inspection of objects at different heights and magnifications

The batteries required for operation (CR1216, 3 V for the microscope and 2 x LR03, 1,5 V for the remote control) are not included in the scope of delivery.

Scope of delivery

Inspection system, remote control, power supply, monitor cable (DisplayPort/HDMI), computer cable (USB/mini-USB), Tek-Scope Plus software and manual on USB memory stick, 3D lens

Details

Focus adjustable
Digital zoom on/off

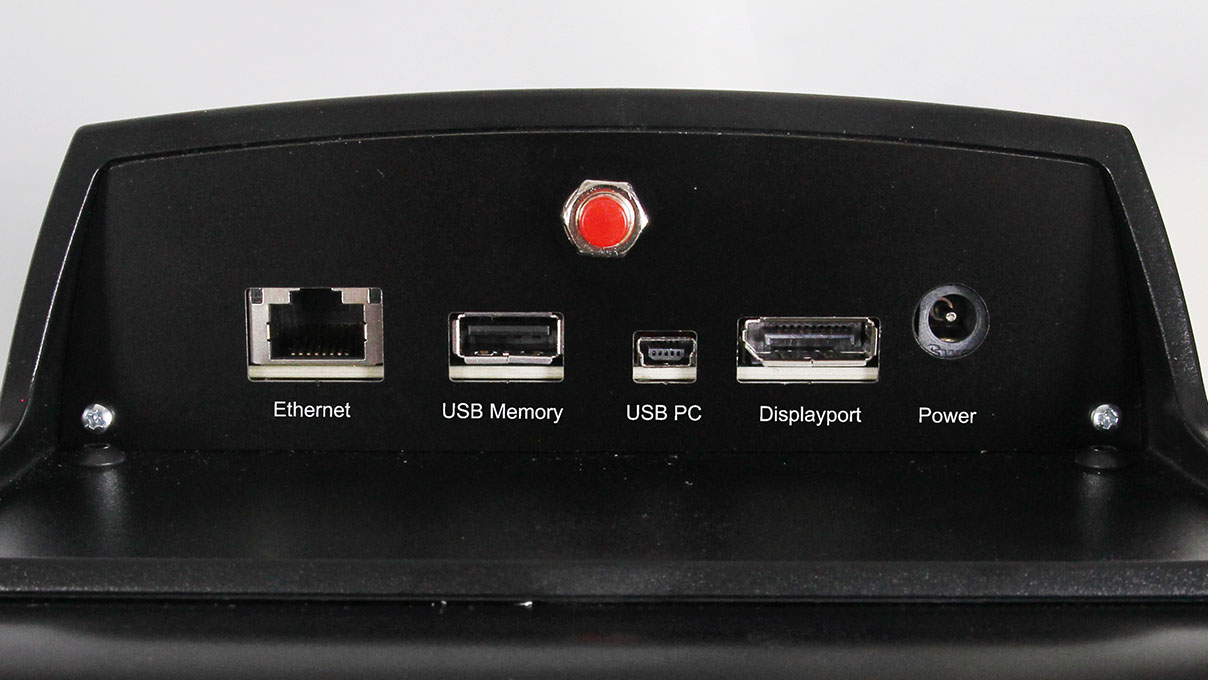

Connection of a monitor via DisplayPort/HDMI interface
Direct image storage on a USB memory stick
PC connection software via micro USB/USB port
Measurement & drawing functions
Improved depth of field for easier and faster work
Ethernet connection for simultaneous screen sharing

Colour: Black/White
Dimensions (H x W x D): 495,0 x 230,0 x 391,0 mm
Eye: Fitting for all
Field of view: 370 x 215 mm
Magnification: 46x / 460x
Power plug: EC
Power supply: Battery
Product area: Lamps & magnifiers
Weight (kg): 6.75
