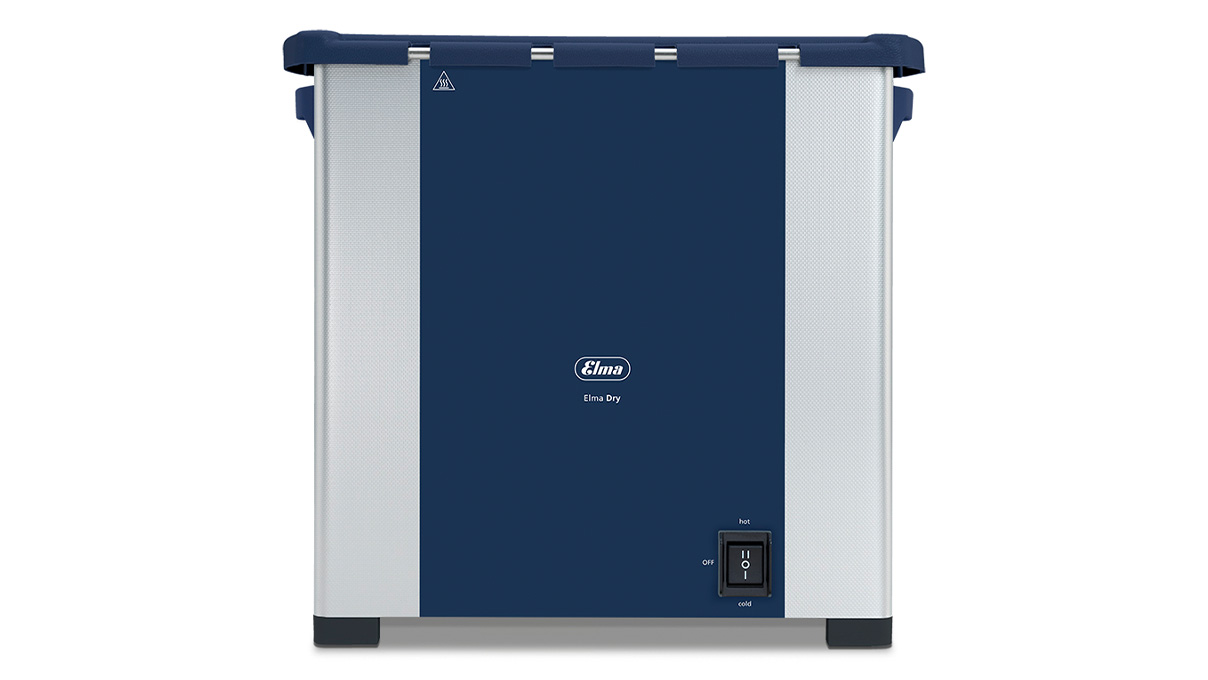

Elmadry TD 120, drying unit, 220 - 240 V

Product information "Elmadry TD 120, drying unit, 220 - 240 V"

Elmadry TD drying units are available and designed for use in production, workshop and service. After ultrasonic cleaning, the parts are first rinsed in the basket with municipal water and then conveniently placed in the Elmadry TD drying unit.

Fitted with cold and hot air blower (70 °C), sensitive parts can also be dried gently. In cold air operation, the parts to be dried can also be cooled quickly. The hot air function is activated while the cover is on.

The cover has ventilation slots, ensuring that maximum air turbulence is produced and the moist air is conducted to the outside. At the same time, the cover reduces energy consumption.

The dust filter on the underside is replaceable and prevents re-soiling of the cleaned parts by the dust in the room air.

Elmadry TD units are very user-safe thanks to the safety shutdown upon reaching the limit temperature.

Details

Consumption: 570 W
Dimensions (H x W x D): 320,0 x 340,0 x 285,0 mm
Heating: 550 W
Inner dimension (H x W x D): 200 x 300 x 240 mm
Material: Chrome steel
Power supply: 220 - 240V
Product area: Equipment & machines
Series: Elmadry TD
Size: 120
Temperature: 70 °C
Typ: Drying unit
Weight (kg): 6.1

Show more

Name

Elma Schmidbauer GmbH

Address

Gottlieb-Daimler-Str. 17

78224 Singen

Germany

E-Mail

[email protected]

Phone

+49 7731 882 0

Product number: 314506

Brand: Elma

Sales unit: 1

Show special conditions

Prices incl. VAT plus shipping costs

Special conditions and scale prices

Quantity	Unit price	Discount	Your purchase price

Included in the following categories

Elma

Elmadry

Show more

Accessories

Elmasonic Select 120 ultrasonic unit, with heating and drain, 115 -120 V

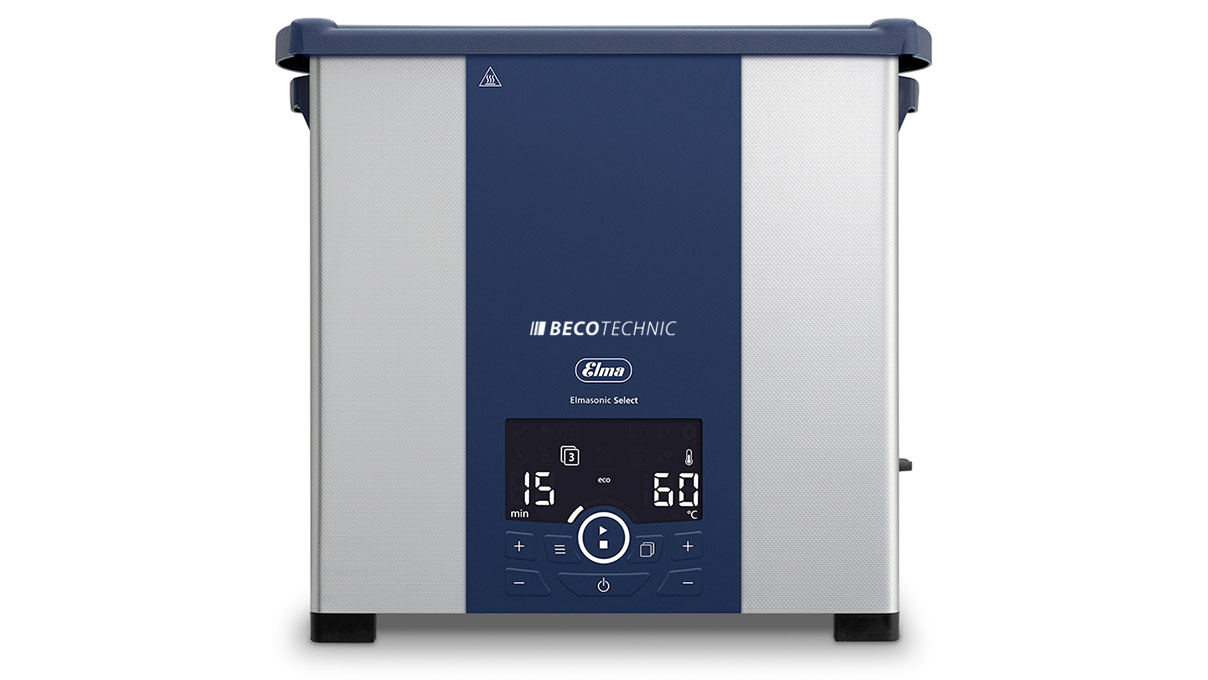

Elmasonic Select 120 ultrasonic unit, with heating and drain, 220 - 240 V Art-Nr. 314715

Show special conditions

Pin set for Elma baskets Art-Nr. 313250

Show special conditions

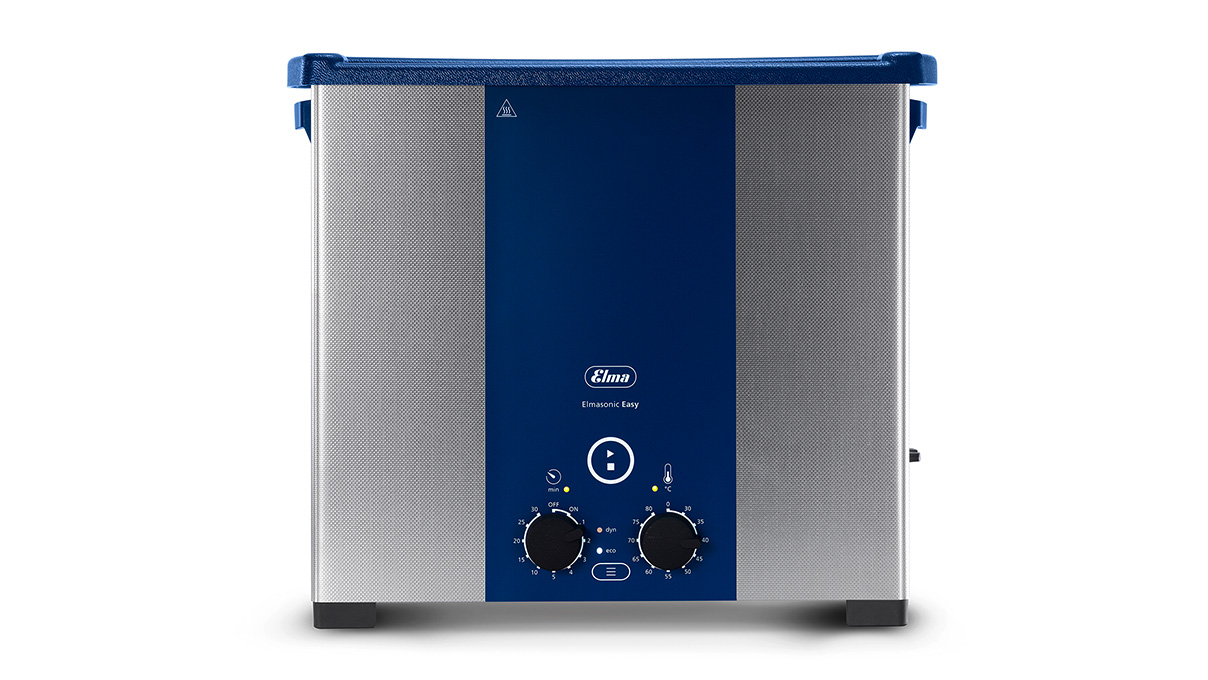

Elmasonic Easy 120H ultrasonic unit, with heating and drain, 220 - 240 V Art-Nr. 314354

Show special conditions

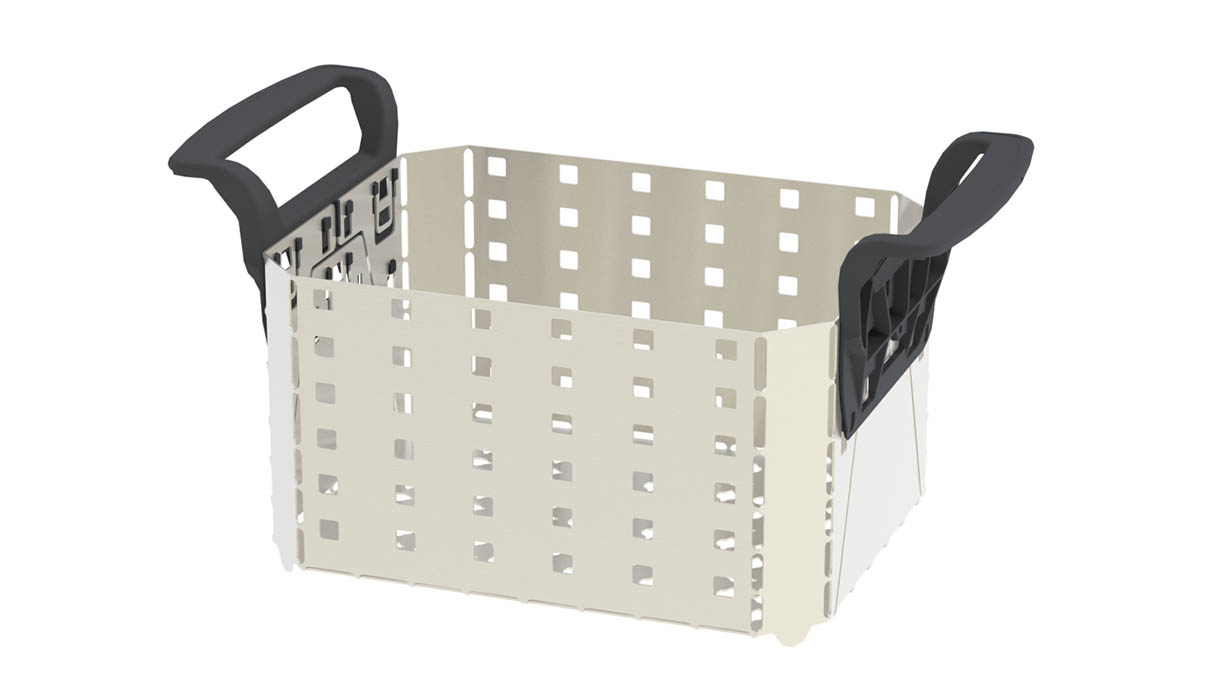

Cleaning basket for Elmasonic, stainless steel with plastic handles, size 120 Art-Nr. 313230

Show special conditions

Silicone mat for Elmasonic and Elmadry, size 30 to 40

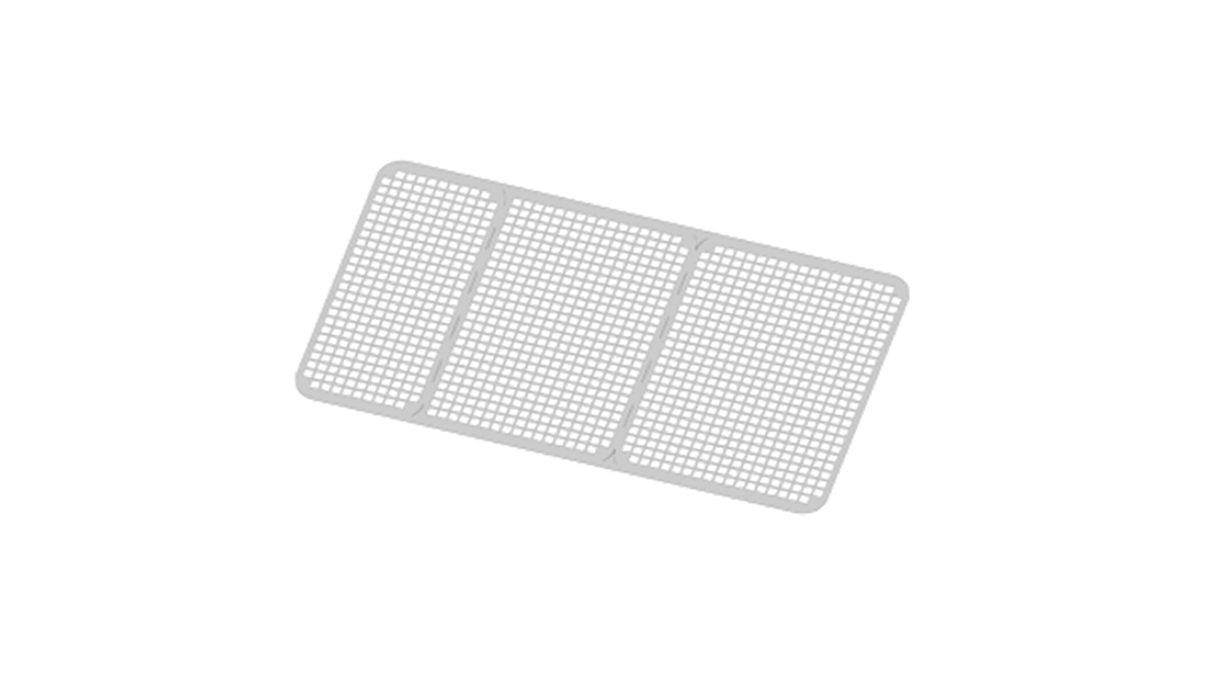

Silicone mat for Elmasonic and Elmadry, size 60 to 300 Art-Nr. 314502

Show special conditions

Elma dividers for modular baskets, size L, low

Elma dividers for modular baskets, size S, high Art-Nr. 313261

Show special conditions

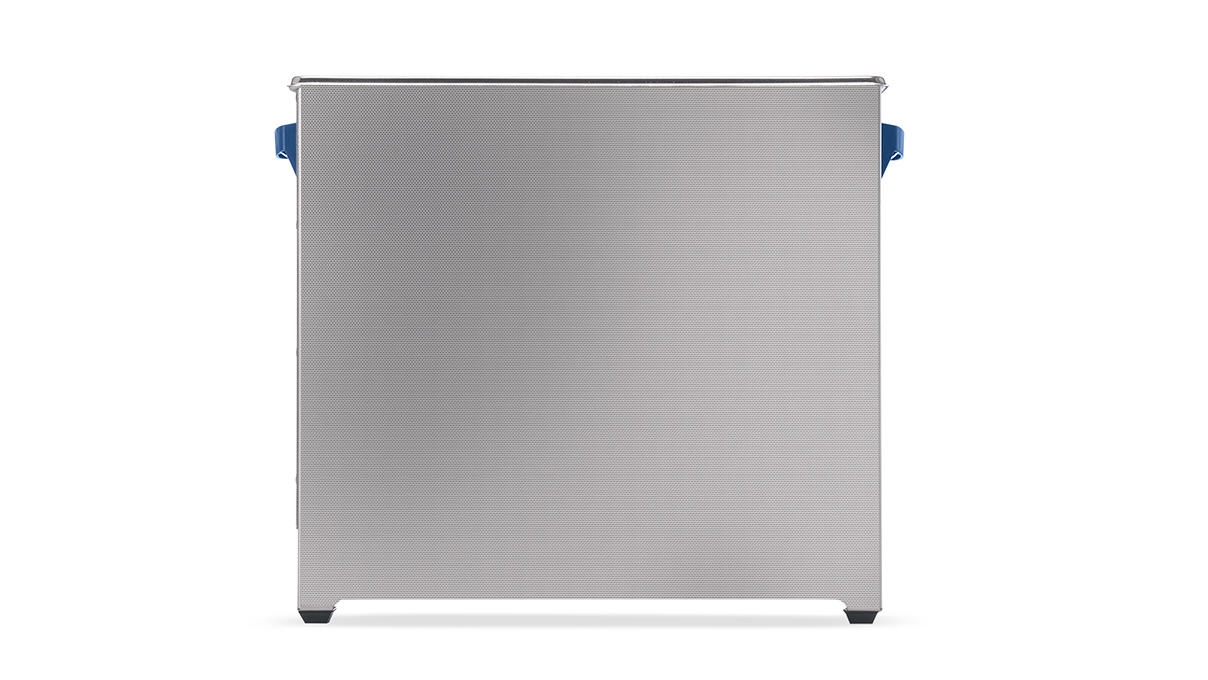

Elma Sink L, rinsing device, with drain and hose clamp Art-Nr. 314363
